CQF型系列磁力驱动泵 |
|
CQ、CQF、CQB系列磁力泵适用于石油、化工、制药、冶炼、电镀、环保、食品、影视洗印、水处理、国防等行业，是输送易燃、易爆、挥发、有毒、稀有贵重液和各种腐蚀性液体的设备。

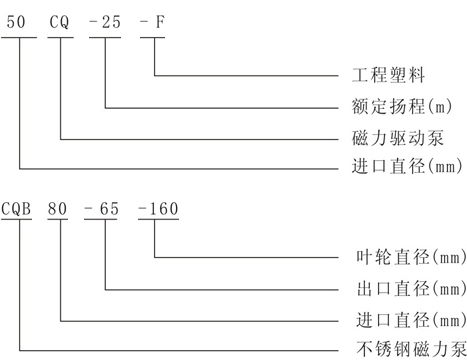

型号意义
性能参数(工程塑料、不锈钢、防爆型)
| 规格型号 |
扬程
(m) |
流量 |
进口
(mm) |
出口
(mm) |
电机功率
(kw) |
电压
(V) |
材质 |
| ( m3 /h) |
(L/min) |
| 8CQ-1.2F |
1.2 |
0.9 |
10 |
8 |
6 |
0.025 |
220 |
工程塑料 |
| 10CQ-3F |
3 |
0.9 |
15 |
10 |
10 |
0.025 |
220 |
| 16CQ-8F |
8 |
1.5 |
20 |
16 |
12 |
0.12 |
220/380 |
| 20CQ-12F |
12 |
3 |
50 |
20 |
14 |
0.37 |
220/380 |
| 32CQ-15F |
15 |
6.6 |
110 |
32 |
25 |
1.1 |
380 |
| 32CQ-25F |
25 |
6 |
110 |
32 |
25 |
1.1 |
380 |
| 40CQ-20F |
20 |
10.8 |
180 |
40 |
32 |
2.2 |
380 |
| 50CQ-25F |
25 |
14.4 |
240 |
50 |
40 |
4 |
380 |
| 16CQ-8 |
8 |
1.5 |
25 |
16 |
12 |
0.8 |
220/380 |
| 20CQ-12 |
12 |
3 |
50 |
20 |
14 |
0.37 |
220/380 |
不锈钢 |
| 25CQ-15 |
15 |
6 |
100 |
25 |
20 |
1.1 |
380 |
| 32CQ-15 |
15 |
6.6 |
110 |
32 |
25 |
1.1 |
380 |
| 32CQ-25 |
25 |
6 |
80 |
32 |
25 |
1.1 |
380 |
| 40CQ-20 |
20 |
10.8 |
180 |
40 |
32 |
2.2 |
380 |
| 40CQ-30 |
30 |
12 |
180 |
40 |
32 |
4 |
380 |
| 50CQ-25 |
25 |
14.4 |
240 |
50 |
40 |
4 |
380 |
| 50CQ-40 |
40 |
13.2 |
220 |
50 |
40 |
4 |
380 |
| 50CQ-50 |
50 |
13.2 |
130 |
50 |
40 |
5.5 |
380 |
| 65CQ-25 |
25 |
16.8 |
280 |
65 |
50 |
5.5 |
380 |
| 65CQ-35 |
35 |
27 |
450 |
65 |
50 |
7.5 |
380 |
| 80CQ-25 |
25 |
50 |
835 |
80 |
65 |
7.5 |
380 |
| 80CQ-35 |
35 |
50.1 |
835 |
80 |
65 |
11 |
380 |
| 80CQ-50 |
50 |
50.1 |
835 |
80 |
65 |
15 |
380 |
| 100CQ-32 |
32 |
60 |
1700 |
100 |
80 |
18.5 |
380 |
| 100CQ-50 |
50 |
60 |
1700 |
100 |
65 |
30 |
380 |
CQB型号
进口-出口-叶轮 |
流量
( m3 /h) |
扬程
(m) |
进口
(m) |
出口
(m) |
转速
(r/min) |
电机
功率
( kw) |
| 32-20-125 |
3.2 |
20 |
32 |
20 |
2900 |
1.1 |
| 32-20-160 |
32 |
32 |
20 |
2900 |
1.5 |
| 40-25-105 |
6.3 |
12.5 |
40 |
25 |
2900 |
1.1 |
| 40-25-125 |
20 |
40 |
25 |
2900 |
2.2 |
| 40-25-160 |
32 |
40 |
25 |
2900 |
3 |
| 40-25-200 |
50 |
40 |
25 |
2900 |
5.5 |
| 50-40-85 |
8 |
50 |
40 |
2900 |
1.1 |
| 50-32-105 |
12.5 |
12.5 |
50 |
32 |
2900 |
2.2 |
| 50-32-125 |
20 |
50 |
32 |
2900 |
3 |
| 50-32-160 |
32 |
50 |
32 |
2900 |
4 |
| 50-32-200 |
50 |
50 |
32 |
2900 |
7.5 |
| 50-32-250 |
80 |
50 |
32 |
2900 |
15 |
| 65-50-125 |
20 |
65 |
50 |
2900 |
5.5 |
| 65-50-160 |
25 |
32 |
65 |
50 |
2900 |
7.5 |
| 65-40-200 |
50 |
65 |
40 |
2900 |
15 |
| 65-40-250 |
80 |
65 |
40 |
2900 |
22 |
| 80-65-125 |
20 |
80 |
65 |
2900 |
7.5 |
| 80-65-160 |
32 |
80 |
65 |
2900 |
15 |
| 80-50-200 |
50 |
50 |
80 |
50 |
2900 |
18.5 |
| 80-50-250 |
80 |
80 |
50 |
2900 |
30 |
| 100-80-125 |
20 |
100 |
80 |
2900 |
11 |
| 100-80-160 |
32 |
100 |
80 |
2900 |
18.5 |
| 100-65-200 |
100 |
50 |
100 |
65 |
2900 |
30 |
| 100-65-250 |
80 |
100 |
65 |
2900 |
37 |
|
|
| |
|
